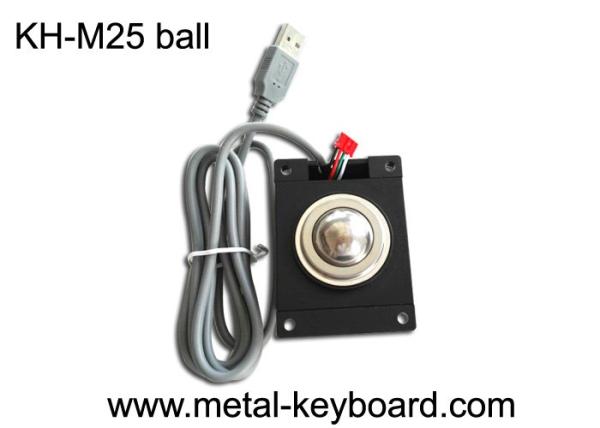

IP65 Rated Industrial Trackball, stable 25MM laser trackball module
KH-M25 ball
Dimension: 76 x 55 mm (Front panel)
Product Description
1. IP65 splashed water proof design!
2. Use high performance optical sensor
3. 25mm laser trackball , standard USB or PS2 output support
4. Integrated 2/3 click buttons/extended additional buttons are available
5. Use most stable and high-compatible MCU controller.
6. Stable performance and well compatible with windows, mac or linux, and industrial control OS.
Product Features:
Adopts laser inductive sensor and stable fully compatible Mcu, the resolution of device is adjustable from 800dpi to 1600 dpi. This allows it a more precise tracking of movements; unique design of waterproof and dust proof makes it easy to get IP65 protect level.Special structure design makes the ball moving free and quiet. Hi-quality circuits and software design makes the ball available applications in different industrial areas, the medical or marine, public areas and harshest conditions.
Applications:
• This mouse is mainly used for applications in the medical or marine industrial areas, public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.
| Technical Specifications |
| Material | Stainless Steel |
| Net Weight | 0.3KG |
| ELECTRICAL DATA
| Interface: | USB or PS2 |
| Supply Voltage | 5.0V DC±5% |
| Current Rating: | appr. 310mA |
| EMC Standard: | EMC compliant |
| Laser trackball resolution | 1200DPI |
| Environmental Characteristics
| Operating temperature: | -20 C to + 60 C |
| Storage temperature: | - 40 C to + 80 C |
| Operating RH: | 20-95% |
| Atmospheric pressure: | 60-106Kpa. |
| Mechanical Data | Key switch lifespan | more than 10 Mio actuations |
| Keypad Lifespan | more than 5 years |
| keys Lifespan | > 5 years |
| Reliability | MTBF | >50,000H |
| MTTR | <30min |
| Operation system | It is compatible to All windows, Linux, Unix, Mac OSX |
Remark:
1. We offer the high quality and reliable products.
2. We promise all our products are with 1 year warranty.
3. We provide the professional and fast reply and service within 12 hours.
4. We offer the moderate and reasonable price, and we also welcome the distributors and dealer/agency to share our products.
5. Our products are strictly according to IP65/FCC/CE/ROHS regulations and requirements.
6. There is only 1-2 weeks for the production lead time.
