USB connection 8 Buttons keypad numeric customization layout vandal resistant

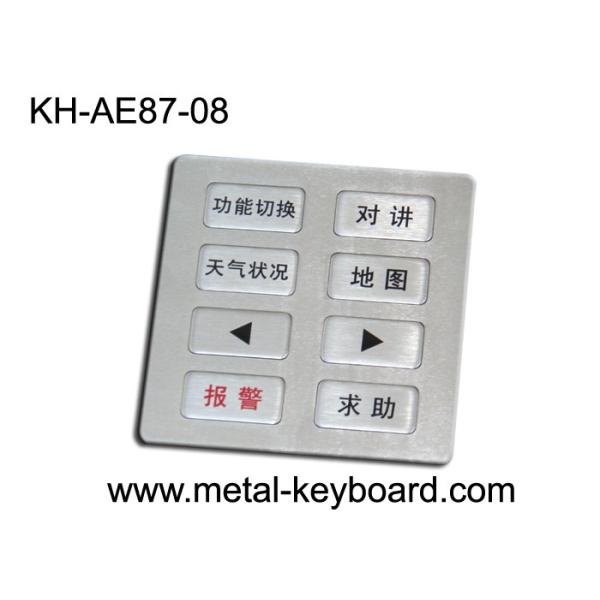

KH-AE87-08
Size:87 x87mm(Front Panel)
DESCRIPTION:
- Rugged metal panel mount keypad, 8 Keys customized Layout, followed IP65 Water-proof,dust-proof,Vandal-proof Performance
PRODUCT FEATURES -
- USB connection of 8 Buttons numeric Keypad
- Customization layout design with free additional charge
- Electro Carbon-on-Gold PCB key switch technology
- Vandal resistant, lliquid proof, dust proof of keypad to protect it using in harsh conditions
- Top panel w/bolt mounting solution
- All international language lay-out are optional.
APPLICATION -
Mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals,kiosk, etc.
TECHNICAL DATA -
| Mechnical Data | Environmental Adaptability |
| Key Travel | 0.45mm | Operating temperature | -20°C to +60°C |
| Switch Life | >1 million of per key | Storage temperature | -30°C to +70°C |
| OS | WINDOWS98/ME/2000/2003/XP/Vista/
Linux,Unix,MacOSX,iOS, Android | Operating RH | 20-95% |
| Atmospheric pressure | 60-106Kpa. |
| Electrical Data | Reliability |
| Supply Voltage | 5.0V DC±5% | Compliant Standard | RoHS , CE and FCC |
| Current Rating | Appr. 30mA | Protection Level | IP65(front panel) |
| EMC Standard | Council EMC directive 2004/108/EC | Vandal resistant | IK10 |
| EN55022 | 2006+A2:2010 | Key Lifespan | >1 million actuation |
| EN55024 | 1998+A1:2001+A2:2003 | MTBF | >50000H |
| Lifespan | > 5 years | MTTR | <30min |
FAQ-
1. How can I get samples?
A: Please contact us: email, skype or "chat now", once receipt of message, we will further check and confirm with you for samples.
2. How long is the sample lead time?
A: If there is a stock for products, it is around 3 days upon reciept of payment,
if no stock, there would be around 5-7 days for existing items production lead time;
for the new developing items, the lead time is within 2 week from development to sample finished.
3. How about the MOQ?
A: The MOQ is based on different types of input devices. Normally, for industrial metal input devices, the MOQ is 1 set.
4. If I need to change the languages on the keyboard, is there any additional cost?
A: No addtional charge for changing the languages on te keyboad.
5. Will you do OEM items?
A: Of course. Welcome for OEM orders.
6. Are you a trading company or manufacturer?
A: We are a manufacturer with own R&D team focusing on industrial input devices development, production, marketing, sales and service.
